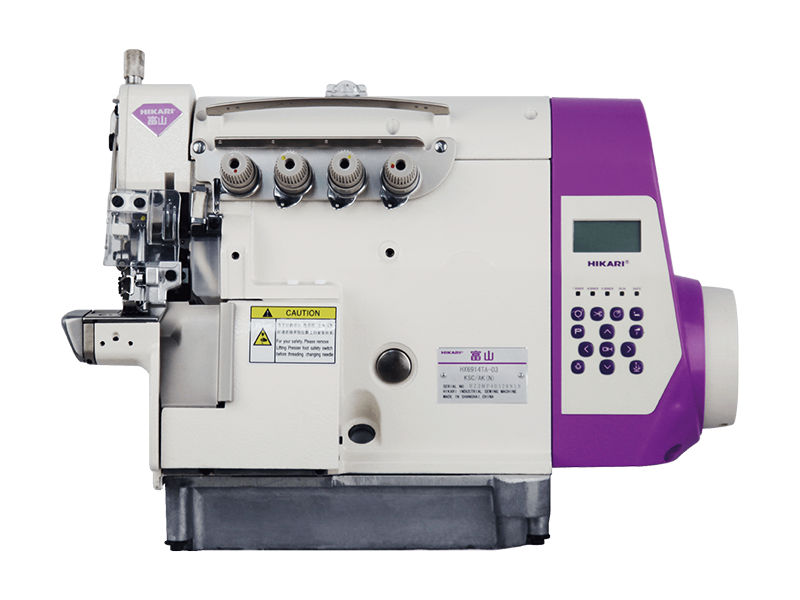

Overlock Sewing Machine, HX6900TA KSC/AK

Introducing our computerized direct drive overlock sewing machine that features a narrow cylinder design. With its small cylinder bed, this machine enables high-speed overlock operations in small sewing areas. It excels in sewing children's garment cuffs, lingerie elastic tape, gloves, and other delicate items, elevating both production efficiency and sewing precision.

Specifications
Model HX6904TA-02KSC/AC HX6914TA-03KSC/AK HX6914TA-04KSC/AK
Needle DCx27 #10 DCx27 #11 DCx27 #11
No. of needles 1 2 2
No. of threads 3 4 4
Needle pitch 0 2 2
Stitch width 4mm 4mm 4mm
Stitch length 0.7-3.8mm 0.7-3.8mm 0.7-3.8mm
Differential ratio 0.8-1.8 0.8-1.8 0.8-1.8
Presser foot lifting height 5.5 5.5 5.5
Light √
Medium √
Heavy √
Speed (S.P.M) 7000 r/min 7000 r/min 7000 r/min
Dimensions 530x370x555mm 530x370x555mm 530x370x555mm
Features

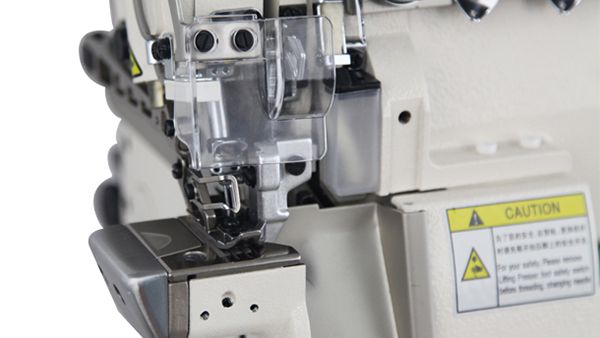

    1. Compact and Precise

    2. Compact and Precise The 148mm cylinder bed circumference allows seamless adaptation to small and challenging sewing processes.

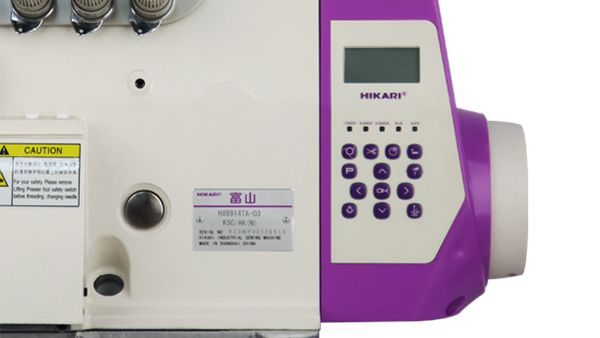

    1. Integrated Design

    2. Integrated Design Upgraded with an integrated design, improving both hardware and software performance and sewing quality.
