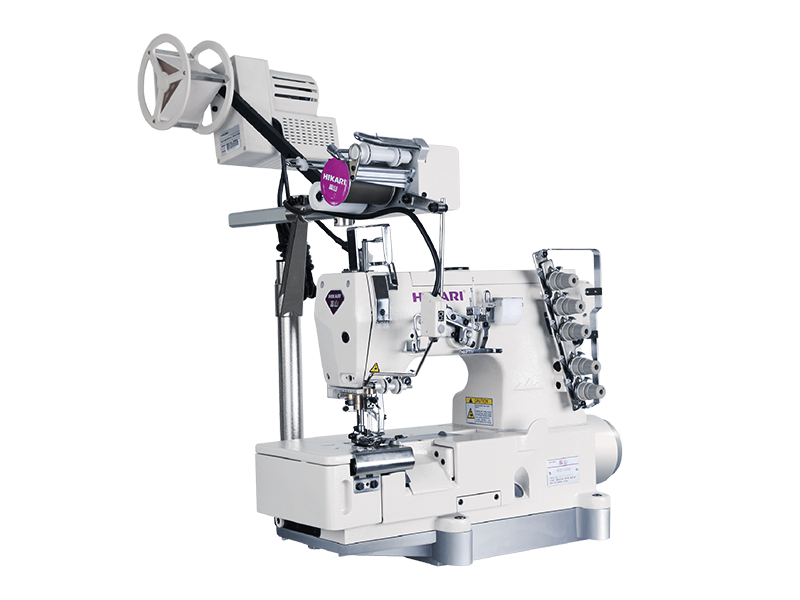

Interlock Sewing Machine, HW762T 05/SP09B
Computerized direct drive flatbed flatlock machine with computer-controlled feeding device
Discover our computerized direct drive flatbed interlock sewing machine with a computer-controlled feeding device, ensuring smooth and precise operation to cater to various flatlock stitching requirements. With a computer control elastic tension system, our interlock sewing machine offers different levels of tension to choose from.
The unique stitch pattern created by our interlock sewing machines allows fabrics to stretch and recover during wear, making them ideal for sewing close-fitting knitwear garments such as tank tops, underwear, cotton sweaters, sportswear, bras, and leggings.
| Model | | |
| Needle | UY128GAS#10S | UY128GAS#10S |
| No. of needles | 3 | 3 |
| No. of threads | 5 | 5 |
| Needle pitch | 5.6 | 5.6 |
| Stitch length | 4.4mm | 4.4mm |
| Presser foot lifting height | 5 | 5 |
| Differential ratio | 0.5-1.0 | 0.5-1.0 |
| Speed (S.P.M) | 5000 r/min | 5000 r/min |
| Dimensions | 700x410x670mm | 700x410x670mm |
-
-

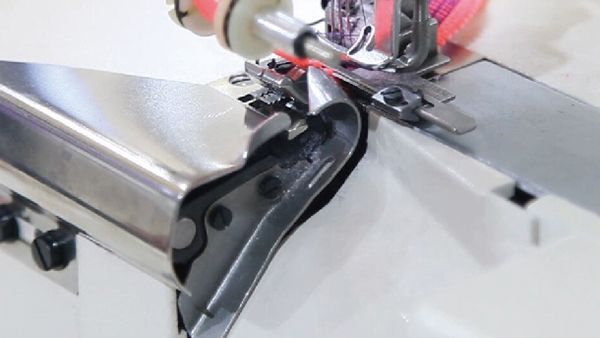

Convenient Right Trimmer The inclusion of a right trimmer facilitates easy operation when sewing different fabrics and products using flatlock stitching.
-
-
-

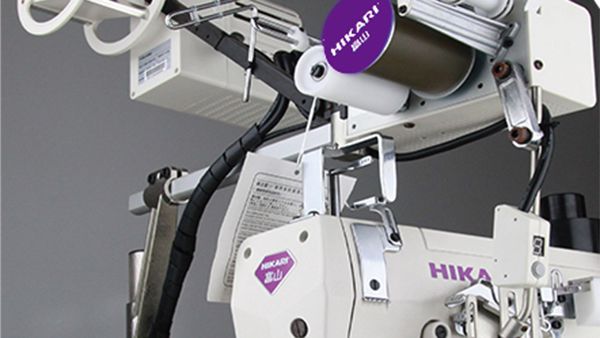

Steady Fabric Feeding With our computer-controlled feeding device, fabric feeding is smoother, enhancing overall efficiency during sewing.
-
-
-

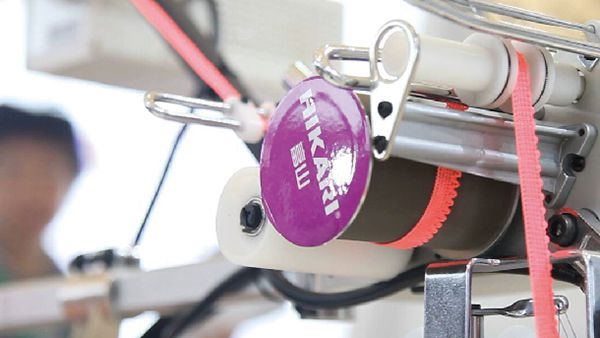

Adjustable Elastic Tension The computer-controlled elastic tension system allows for multi-step control, providing flexibility in selecting the appropriate tension for different flatlock stitching scenarios, expanding the machine's versatility.
-
-
-

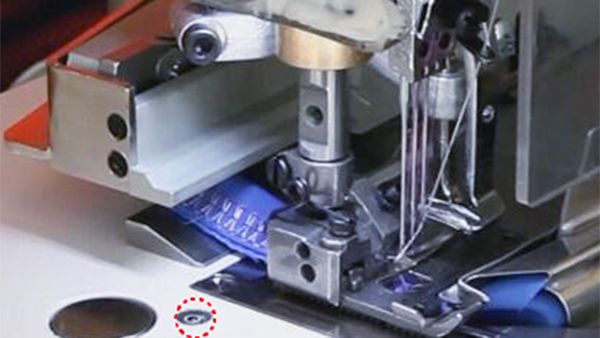

Optional Photoelectric Sensor Improve work efficiency with optional photoelectric sensors, where the stereo design automatically senses and cuts the tape, significantly increasing productivity.
-
