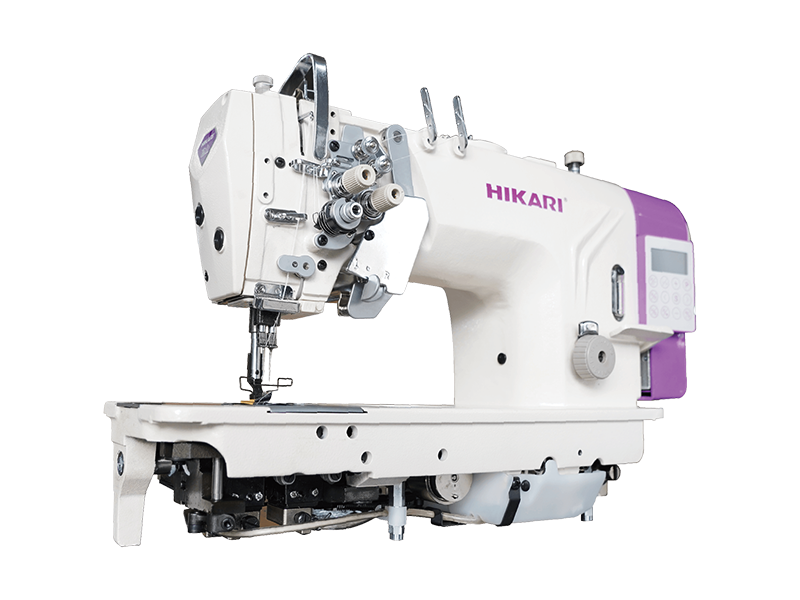

Lockstitch Sewing Machine, HT9220TC/HT9260TC

Our computerized direct drive double needle sewing machine with a split needle bar is an advanced sewing equipment model. It adopts computerized direct drive technology, ensuring stable, efficient, and precise operation to meet high-demand sewing tasks. Its unique split needle bar design allows simultaneous double-needle flat stitching, enhancing production efficiency and stitching stability. This sewing machine is also equipped with a high-efficiency plain knife trimmer, enhancing your sewing efficiency.

Specifications
Model HT9220TC-7P-5/AK HT9220TCH-7P-5/AK HT9260TC-7P-5/AK HT9260TCH-7P-5/AK HT9260TC-7P-5
Oil supply Automatic oil supply Automatic oil supply Automatic oil supply Automatic oil supply Automatic oil supply
Needle DP×5 DP×5 DP×5 DP×5 DP×5
Stitch length 0-5mm 0-5mm 0-7mm 0-7mm 0-5mm
Presser foot lifting height 7-16 7-16 7-16 7-16 7-16
Speed of starting backstitch, reinforcement stitch, and continuous backstitch for reinforcement 250-1800rpm 250-1800rpm 250-1800rpm 250-1800rpm 250-1800rpm
Speed of finishing backstitch and reinforcement stitch 250-1800rpm 250-1800rpm 250-1800rpm 250-1800rpm 250-1800rpm
Feed dog height 1mm 1mm 1mm 1mm 1mm
Motor Servo Motor Servo Motor Servo Motor Servo Motor Servo Motor
Power control Microprocessor Microprocessor Microprocessor Microprocessor Microprocessor
Speed (S.P.M) 3000 r/min 3000 r/min 3000 r/min 3000 r/min 3000 r/min
Dimensions 725x320x680mm 725x320x680mm 725x320x680mm 725x320x680mm 725x320x680mm
Features

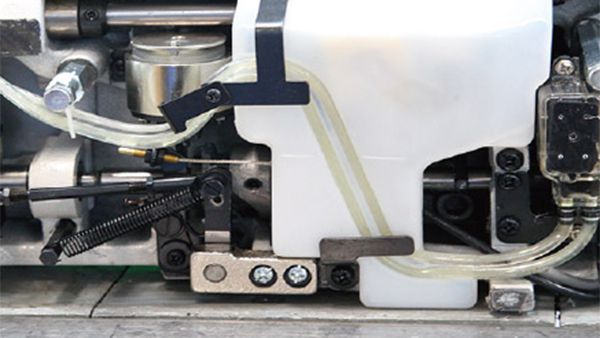

    1. Micro Lubrication Technology

    2. Micro Lubrication Technology Ensure sufficient lubrication for the hook, improving the machine's stability and durability.

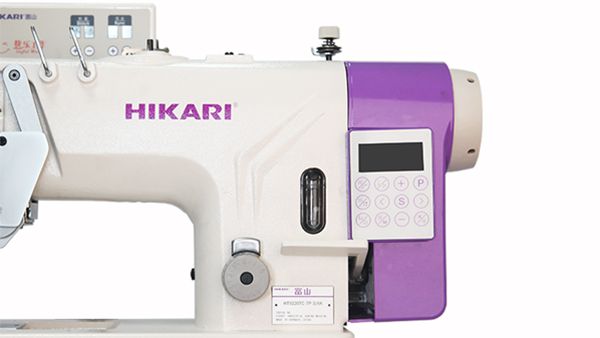

    1. Integrated Design and Upgraded

    2. Integrated Design and Upgraded Enhance both hardware and software performance for improved sewing quality. The control panel combines technology and practicality seamlessly.

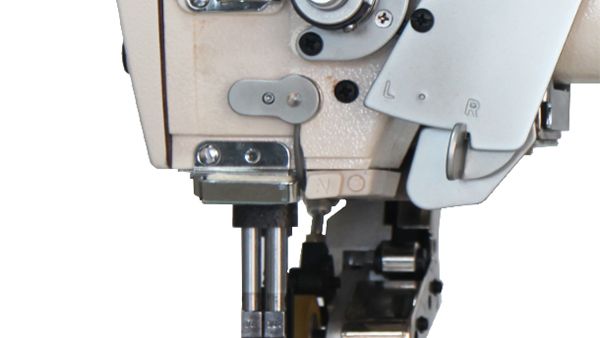

    1. Optimized Presser Lift Foot Structure

    2. Optimized Presser Lift Foot Structure Rationalize output force, minimize damage to the equipment, and extend the machine's lifespan.

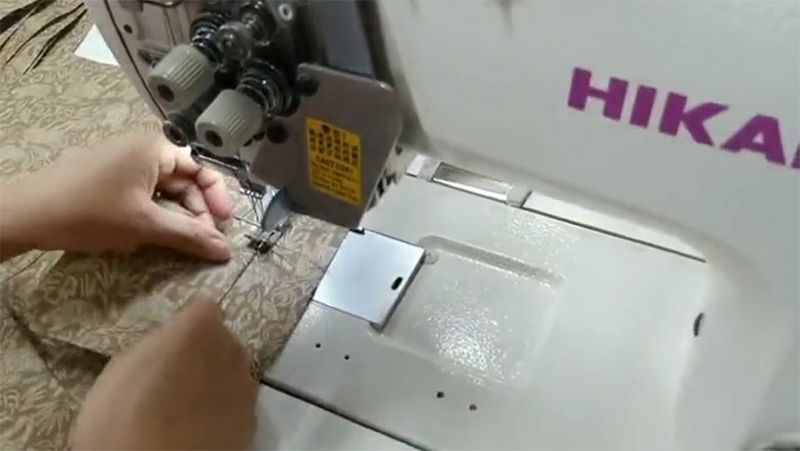

    1. Added Thread Clipping Function

    2. Added Thread Clipping FunctionDuring thread clipping at the start of sewing, the thread tail is placed under the fabric, reducing the risk of tangled threads and ensuring a smoother sewing process.
