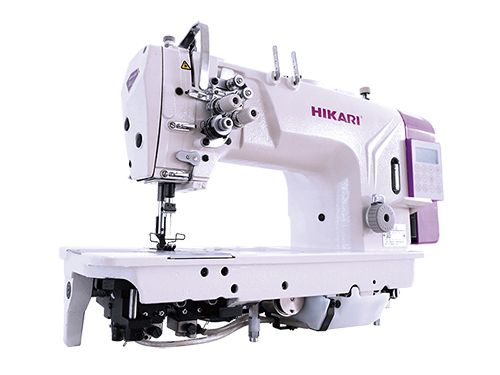

Lockstitch Sewing Machine, HT9210TC/HT9250TC

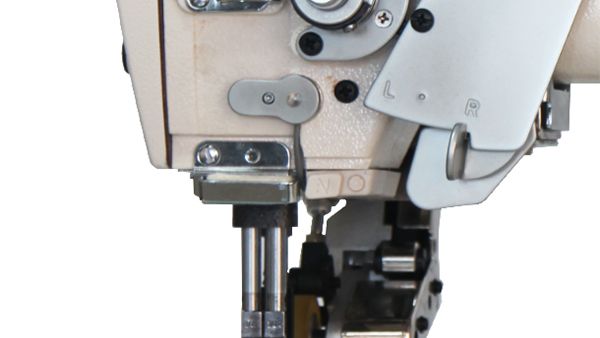

Our computerized direct drive double needle sewing machine with a single needle bar comes with the dual needle functionality, allowing simultaneous stitching with two needles to boost production efficiency. Whether handling shirts, jackets, jeans, or other clothing items, this machine completes various sewing tasks with speed, accuracy, and reliability, delivering higher productivity and high-quality stitching for garment manufacturers.

Specifications
Model HT9210TC-7P-5/AK HT9210TCH-7P-5/AK HT9250TC-7P-5/AK HT9250TCH-7P-5/AK
Oil supply Automatic oil supply Automatic oil supply Automatic oil supply Automatic oil supply
Needle DP×5 DP×5 DP×5 DP×5
Stitch length 0-5mm 0-5mm 0-7mm 0-7mm
Presser foot lifting height 7-16 7-16 7-16 7-16
Speed of starting backstitch, reinforcement stitch,
and continuous backstitch for reinforcement 		250-1800rpm 250-1800rpm 250-1800rpm 250-1800rpm
Speed of finishing backstitch and reinforcement stitch 250-1800rpm 250-1800rpm 250-1800rpm 250-1800rpm
Feed dog height 1mm 1mm 1mm 1mm
Motor Servo Motor Servo Motor Servo Motor Servo Motor
Power control Microprocessor Microprocessor Microprocessor Microprocessor
Speed (S.P.M) 4000 r/min 3000 r/min 3000 r/min 3000 r/min
Dimensions 725x320x680mm 725x320x680mm 725x320x680mm 725x320x680mm
Features
    1. Efficient Plain Knife Trimmer

    2. Efficient Plain Knife Trimmer The sewing machine is equipped with a high-efficiency plain knife trimmer, enhancing your sewing efficiency.

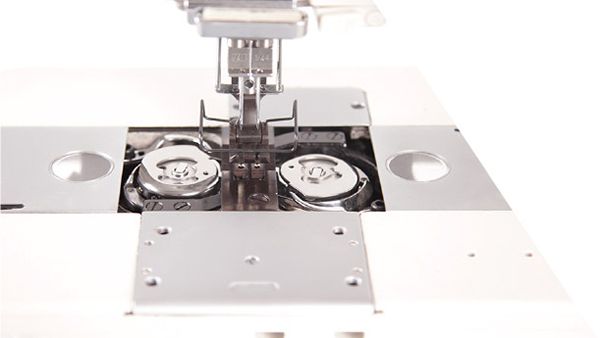

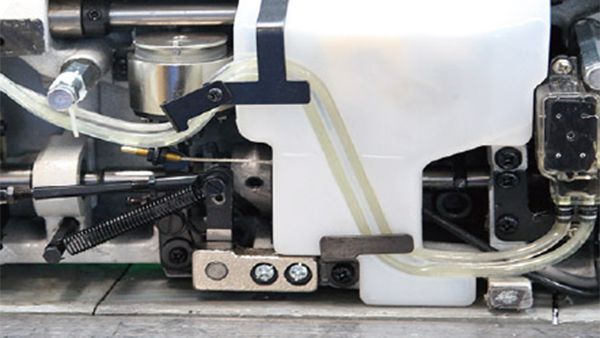

    1. Micro Lubrication Technology

    2. Micro Lubrication Technology Ensure sufficient lubrication for the hook, improving the machine's stability and durability.

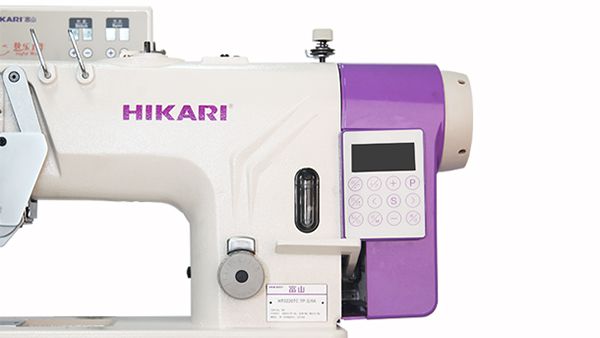

    1. Integrated Design and Upgraded

    2. Integrated Design and Upgraded Enhance both hardware and software performance for improved sewing quality. The control panel combines technology and practicality seamlessly.

    1. Optimized Presser Lift Foot Structure

    2. Optimized Presser Lift Foot Structure Rationalize output force, minimize damage to the equipment, and extend the machine's lifespan.

    1. Added Thread Clipping Function

    2. Added Thread Clipping Function During thread clipping at the start of sewing, the thread tail is placed under the fabric, reducing the risk of tangled threads and ensuring a smoother sewing process.
