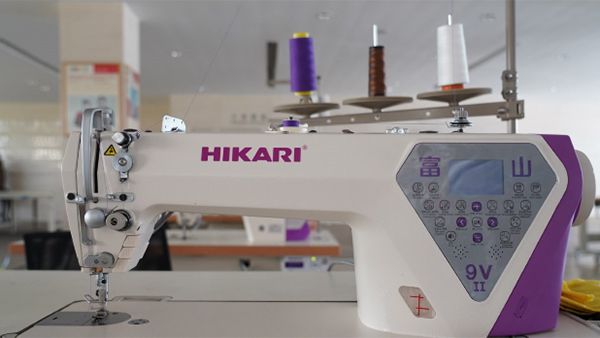

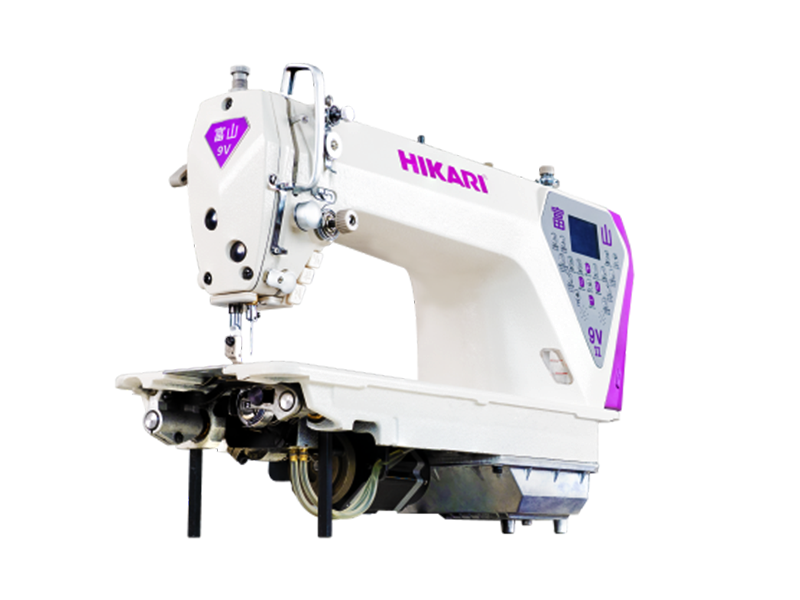

Lockstitch Sewing Machine, H9V-II

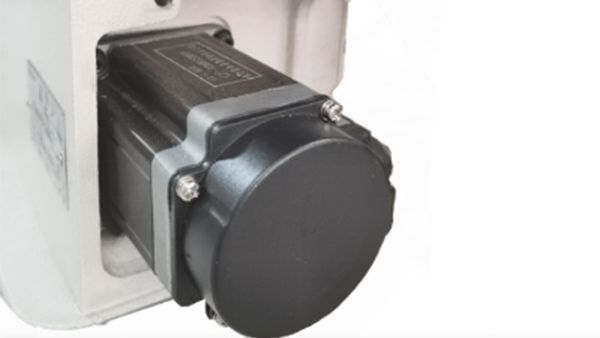

New generation of intelligent sewing machine with digital drive

Request a Quote
Lockstitch Sewing Machine, H9V-II
Specifications
  • Model: H9V-II-7D-5/AK
  • Oil supply: Automatic oil supply
  • Needle: DBx1
  • Stitch length: 0-5mm
  • Presser foot lifting height: 0-13
  • Thread trimmer: √
  • Reverse stitching: √
  • Automatic presser foot lifter: √
  • Light: √
  • Medium: √
  • Speed (S.P.M): 5000 r/min
  • Dimensions: 716x261x588mm
Features
    1. No More Thread Breakage
    2. No More Thread Breakage The chance of thread breakage is significantly reduced, ensuring uninterrupted sewing.

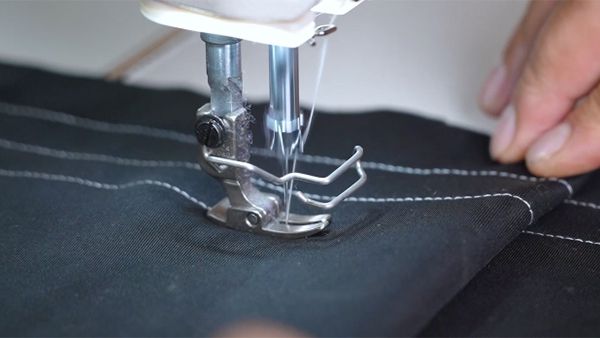

    1. Seamless Fabric Transitions
    2. Seamless Fabric Transitions Adjustments for changes in thin and thick fabrics are virtually eliminated.

    1. Wrinkle-Free Stitching
    2. Wrinkle-Free Stitching Seamlessly sew thin fabrics without any wrinkles.

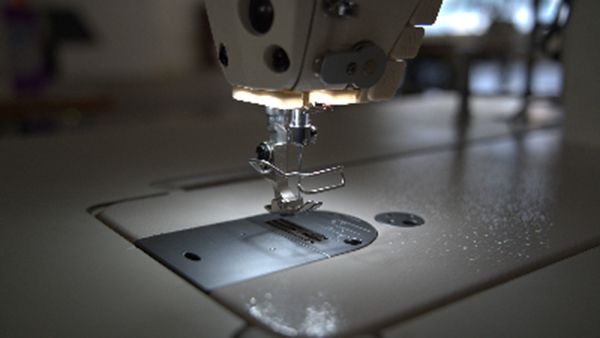

    1. Large Operation Space
    2. Large Operation Space Enjoy a spacious workspace with a length of 310mm, setting a new standard for sewing machines.

    1. Precise Thread Trimming
    2. Precise Thread Trimming The double trimmer design allows thread tails to be controlled precisely within 3mm, and computer-controlled thread cutting ensures a light cutting sound.

    1. Oil-Stain Resistant

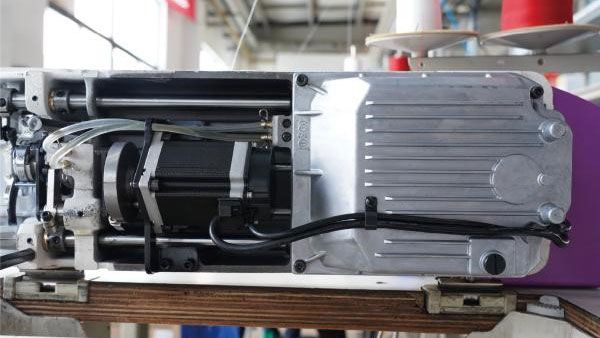

    2. Oil-Stain Resistant The sealed oil pan effectively prevents oil stains and keeps the workspace clean.

    1. Quiet Reverse Stitching
    2. Quiet Reverse Stitching Computer-controlled reverse stitching eliminates any disturbing noises during work.

    1. Precision Needle Pitch
    2. Precision Needle PitchAchieve high-quality results with the digital needle pitch control, offering 0.1mm accuracy.

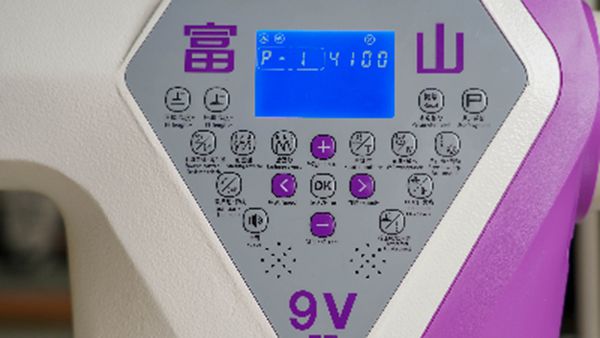

    1. Versatile Stitching Modes
    2. Versatile Stitching Modes Enjoy freestyle, fixed-length, dense stitch, multi-section, multi-section circular, patterned, and more stitching modes.

    1. Adjustable Computerized Foot Lifter
    2. Adjustable Computerized Foot Lifter Easily adjust lifting height and speed with the computer-controlled foot lifter (0-13mm). Delicate fabrics are protected with the slow pressure foot function.

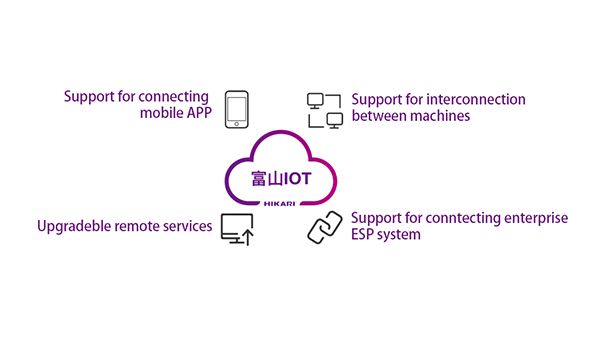

    1. Optional Hikari IoT Functionality
    2. Optional Hikari IoT Functionality Build a digital factory with optional Hikari IoT, enabling equipment network connectivity for enhanced productivity and efficiency.
